A high-performance Class B pyranometer for accurate solar radiation measurement in PV and environmental applications.
| Datasheet |
Product Description
The LPS02 Pyranometer is a high-accuracy sensor designed for measuring global solar radiation, suitable for applications such as PV monitoring, meteorology, and environmental research.
Based on a thermopile sensing principle, it meets ISO 9060:2018 Spectrally Flat Class B requirements, providing reliable and stable measurements. The sensor is factory calibrated according to ISO 9847, ensuring traceable and accurate performance.
Available in multiple configurations including Modbus RTU, analog outputs, and passive mV, the LPS02 offers flexibility for integration into data loggers and SCADA systems. Digital models also include internal diagnostics (temperature, humidity, pressure) for monitoring sensor health and operating conditions.
Key Features:
- Spectrally Flat Class B pyranometer (ISO 9060 compliant)
- Measures global solar radiation up to 4000 W/m²
- Thermopile sensor for high accuracy and long-term stability
- Multiple outputs: Modbus RTU, analog (4–20 mA / voltage), or mV
- Factory calibrated (ISO 9847) with individual calibration report
- Optional tilt sensor for installation monitoring
- Built-in diagnostic sensors (temperature, humidity, pressure) in digital models
- Configurable analog output ranges
- Integrated bubble level and adjustable feet for easy installation
- Rugged IP67 design for outdoor environments

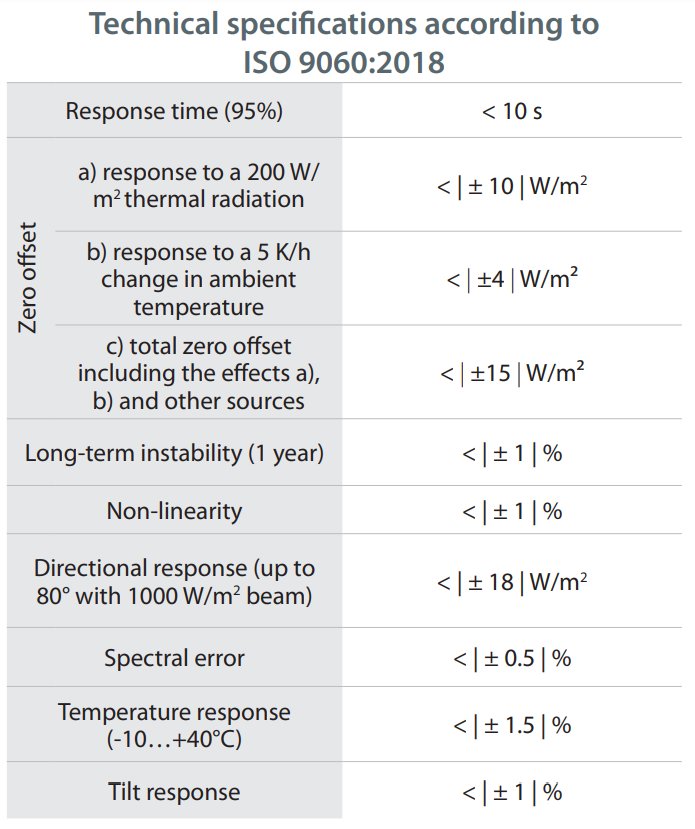

PYRAsense02 is a class B pyranometer according to ISO 9060:2018. Please refer to the table below for the technical specifications according to ISO 9060:
Looking for top-quality measurement instruments?
Contact OTM now
Additional information
| Power supply | no power supply for mV output; 7-30 Vdc for MODBUS-RTU output; 0-30 VDC for analog output (except 0-10 V output); 15-30 VDC for 0-10 V output |
| Output |
