HD52.3DT147 anemometer with rain measurement

An all-in-one weather station sensor with wind speed, wind direction, temperature, humidity, barometric pressure, and rainfall measurement capabilities in a single instrument less than 1 kg. A tipping bucket rain gauge is integrated on the top of the instrument.

Datasheet
Instant quoteSenseca pageMore instruments

Product Description

HD52.3DT147 is an all-in-one weather station sensor with wind speed, window direction, temperature, humidity, barometric pressure, and rainfall measurement capabilities.

There are various digital output interfaces (e.g. MODBUS-RTU) available. The analog output is available for the wind measurement results only.

The rain gauge on the top of the instrument is a tipping bucket rain gauge. Regular cleaning of the filter and bucket is required (typically every 6 months in Singapore).

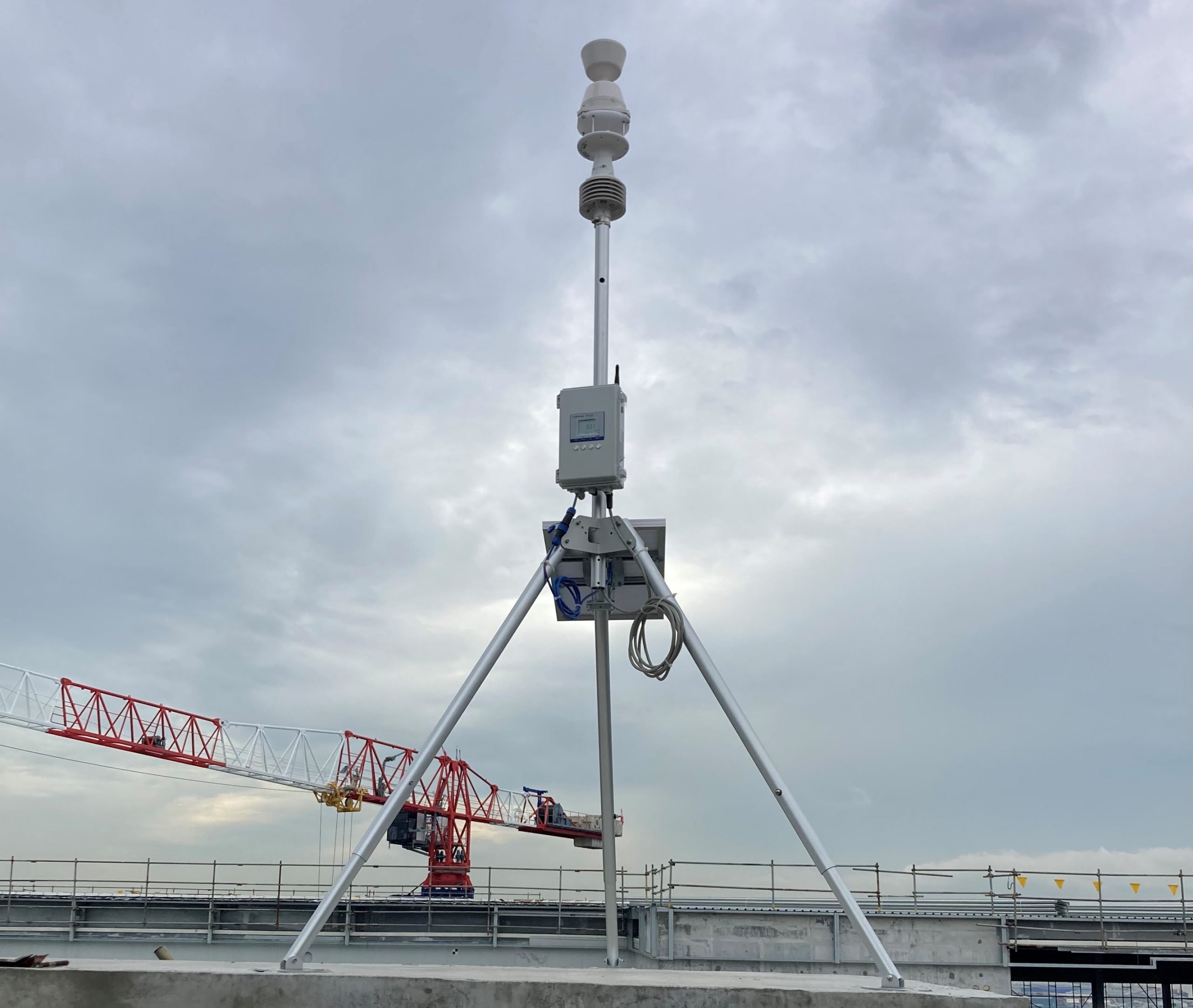

Shown below is an installation of the instrument in Singapore.

Additional information

Power supply10-30 VDC
OutputNMEA, MODBUS-RTU, SDI-12, proprietary RS232 and RS485; analog output for wind results only
