HD35EDWH outdoor general-purpose wireless data logger

Indoor type general purpose wireless data logger with 3 analog input channels.

Instant quoteSenseca pageMore instruments

Product Description

HD35EDWH is a general-purpose wireless data logger for outdoor use. It has 4 analog input channels and supports the following input types:

  • Transmitters with 4-20 mA, 0-1 V, 0-10V, 0-50mV or -50-50mV output
  • Pt100 / Pt1000 sensors, K, J, T, N, E thermocouples
  • Sensors with voltage-free contact output (max. one sensor)
  • Potentiometric sensors

The internal battery can last around 4 years, due to the low power consumption of the data logger. It is possible to use LR35WH in an indoor environment.

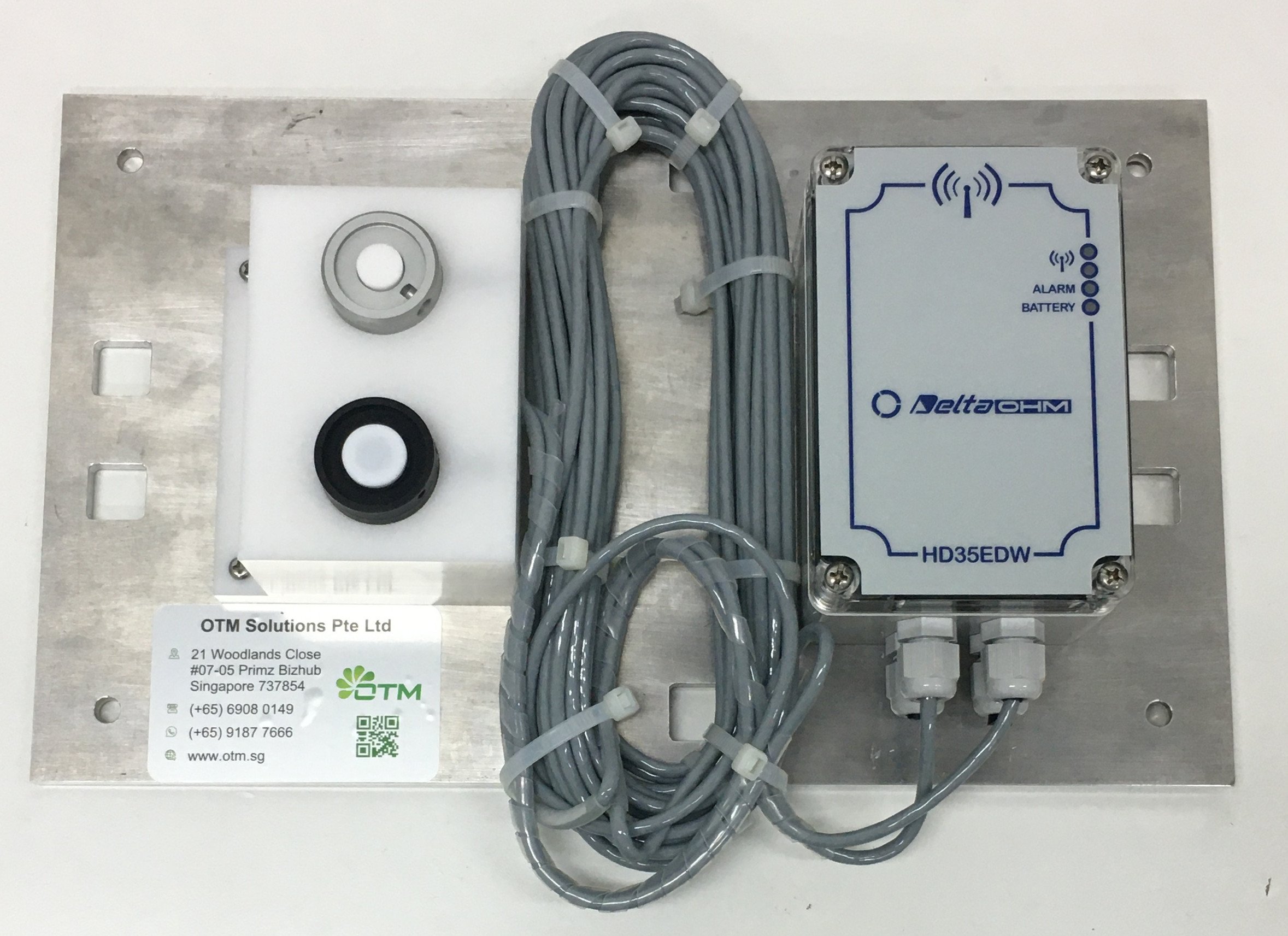

Shown below are some installations of HD35EDWH in Singapore:

Additional information

Power supplyInternal battery (typical lifetime 2 years)
