HD2015 tipping bucket rain gauge

A tipping bucket rain gauge with 200 cm2 of opening area. The resolution is 0.1 mm, 0.2 mm, or 0.5 mm, to be specified when ordering.

Datasheet
Instant quoteSenseca pageMore instruments

Product Description

HD2015 is a tipping bucket rain gauge, with 200 cm2 of opening area. The output type is NC (normally closed) reed contact. The resolution is 0.1 mm, 0.2 mm (default), or 0.5 mm per tip, to be specified when ordering.

The rain gauge can be easily mounted on the ground or a metal structure, without additional accessories.

We also supply rain gauge data loggers or web/wireless data loggers supporting contact output to record the rainfall data.

Shown below is an installation of the HD2013 rain gauge, which is very similar to HD2015:

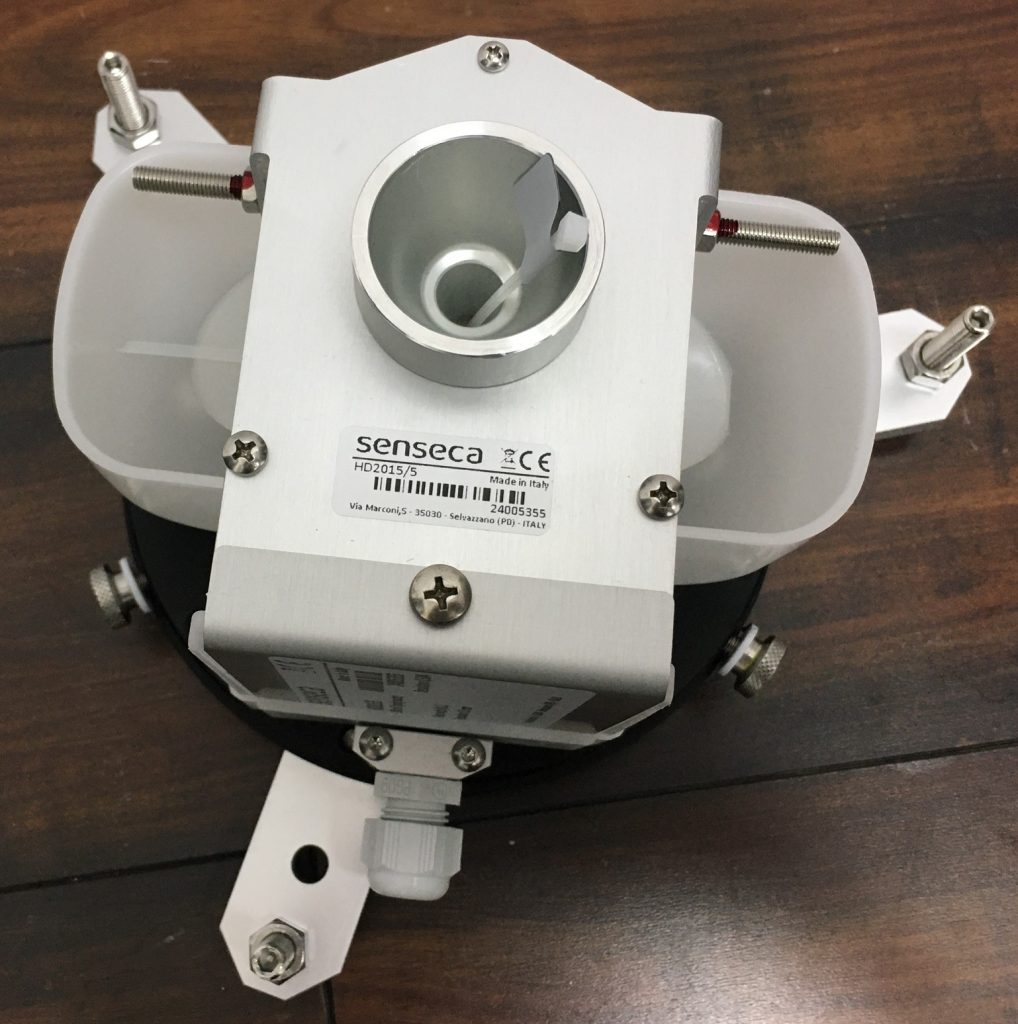

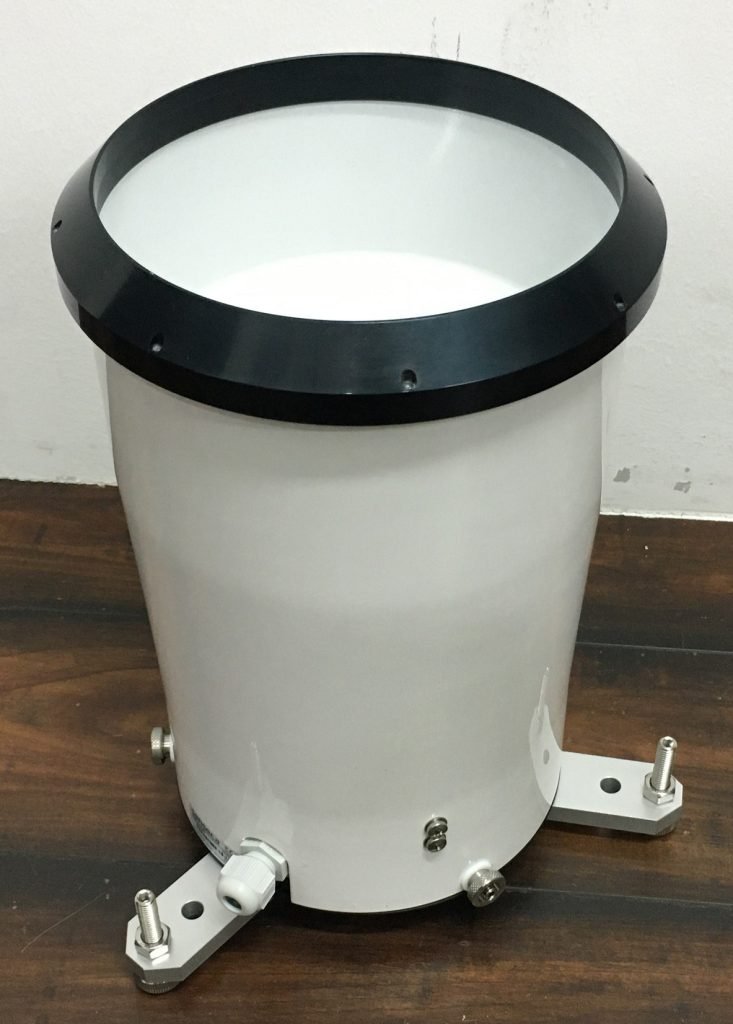

Shown below are some photos of HD2015:

Additional information

Power supplyNot required
OutputNC contact (opens during tipping)
